Views: 0 Author: Site Editor Publish Time: 2026-09-24 Origin: Site
What is Q345 steel? Learn why Q345 high-strength steel is widely used in semi trailers, dump trailers, lowbed trailers, and heavy transport equipment. This guide explains Q345 steel properties, advantages, applications, and why material selection matters for trailer durability.
When purchasing a semi trailer, many buyers focus on:
Trailer capacity
Axle brand
Suspension system
Tire specifications
Price
However, one of the most important factors affecting trailer performance is often overlooked:
The steel material used in the trailer structure.
For heavy-duty transportation equipment, Q345 steel is one of the most commonly used high-strength structural steels in China and international trailer manufacturing.
It is widely applied in:
Flatbed semi trailers
Lowbed semi trailers
Dump semi trailers
Sidewall semi trailers
Heavy equipment transport trailers
The reason is simple:
Q345 steel provides a good balance between strength, toughness, weldability, and cost.
For semi trailer manufacturers, choosing the correct steel directly affects:
✔ Loading capacity
✔ Structural safety
✔ Service life
✔ Weight control
✔ Transportation efficiency
Q345 steel is a high-strength low-alloy structural steel (HSLA) commonly used in engineering structures and heavy equipment manufacturing.
The name "Q345" comes from:
Q = Yield strength ("Qu Fu Dian" in Chinese, meaning yield point)
345 = Minimum yield strength of approximately 345 MPa for specific thickness ranges under the previous designation system
In current Chinese standards, the material designation has transitioned toward Q355 series under GB/T 1591, where Q355 provides a minimum yield strength of 355 MPa for thinner sections. Many industries still commonly refer to the previous Q345 terminology.
| Property | Typical Value |
|---|---|
| Steel Type | High Strength Low Alloy Steel |
| Standard | GB/T 1591 |
| Yield Strength | Approx. 345–355 MPa |
| Tensile Strength | Approx. 470–630 MPa |
| Carbon Content | ≤0.20% |
| Density | Approx. 7.85 g/cm³ |
| Weldability | Excellent |
| Application | Structural engineering, trailers, machinery |
Q345 achieves high strength through alloy elements such as:
Manganese (Mn)
Silicon (Si)
Niobium (Nb)
Vanadium (V)
Titanium (Ti)
These elements improve:
Strength
Grain refinement
Toughness
Structural stability
| Element | Content Range |
|---|---|
| Carbon (C) | ≤0.20% |
| Silicon (Si) | ≤0.50% |
| Manganese (Mn) | 1.0–1.6% |
| Phosphorus (P) | ≤0.035% |
| Sulfur (S) | ≤0.035% |
| Niobium (Nb) | ≤0.07% |
| Vanadium (V) | ≤0.15% |
| Titanium (Ti) | ≤0.20% |
A semi trailer operates under:
Heavy cargo loads
Continuous road vibration
Impact forces
Twisting stress
Harsh environments
Therefore, the trailer frame needs materials with excellent mechanical performance.
| Advantage | Explanation |
|---|---|
| High Strength | Supports heavier cargo loads |
| Better Fatigue Resistance | Handles repeated loading cycles |
| Good Weldability | Easier manufacturing |
| Weight Reduction | Allows thinner plates with similar strength |
| Cost Efficiency | Lower cost than premium alloys |
| Long Service Life | Improves durability |
Different trailer parts require different strength levels.

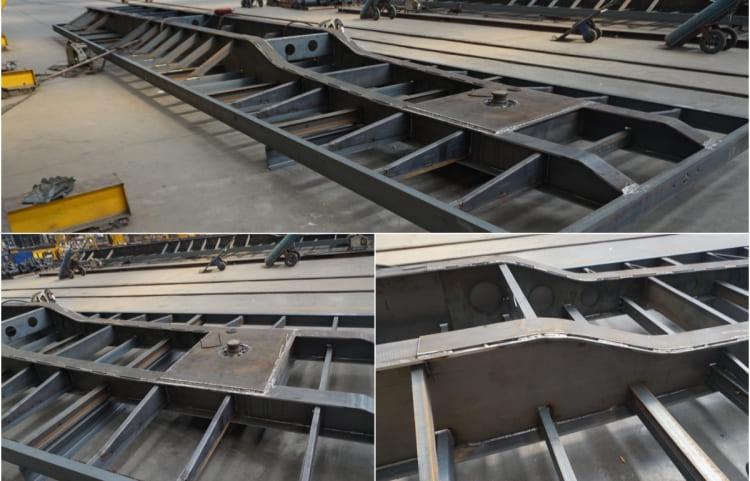

| Trailer Component | Q345 Application |
|---|---|
| Main Beam | High-strength structural support |
| Side Beam | Reinforced frame structure |
| Cross Members | Load distribution |
| Trailer Floor Support | Cargo support |
| Dump Trailer Body | Heavy material transportation |
| Lowbed Frame | Heavy equipment transport |
Many low-cost trailers use ordinary steel, but high-quality manufacturers often select Q345 for critical structures.
| Feature | Q235 Steel | Q345 Steel |
|---|---|---|
| Strength Level | Standard | Higher |
| Yield Strength | Approx. 235 MPa | Approx. 345 MPa |
| Load Capacity | Medium | Higher |
| Weight Reduction | Limited | Better |
| Heavy Cargo | Moderate | Excellent |
| Trailer Application | Light duty | Heavy duty |
Because of updated standards, buyers may also see Q355 steel in modern trailers.
| Item | Q345 | Q355 |
|---|---|---|
| Standard Status | Traditional designation | Updated designation |
| Yield Strength | Approx.345 MPa | Approx.355 MPa |
| Application | Heavy structures | Modern heavy structures |
| Trailer Use | Common | Increasing |
For export trailers, both materials may be used depending on manufacturer specifications and customer requirements.
Many African transportation environments involve:
Rough roads
Long-distance hauling
Heavy loads
Mining operations
A trailer built with Q345 steel provides:
High-strength steel helps the trailer carry:
Containers
Construction equipment
Mining materials
Compared with standard steel, Q345 provides better structural strength under:
Bending forces
Impact loads
Continuous vibration
For customers operating in remote areas, reducing repair frequency is extremely important.
| Trailer Type | Q345 Usage |
|---|---|
| Flatbed Semi Trailer | Main beam and chassis |
| Lowbed Semi Trailer | Heavy-duty frame |

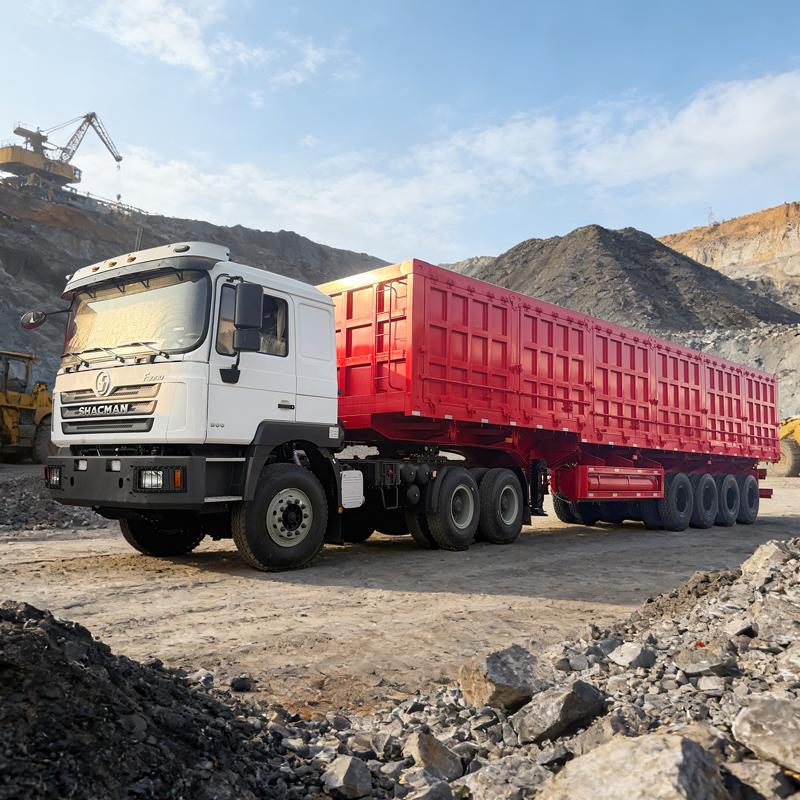

| Dump Semi Trailer | Chassis and reinforced body |
| Sidewall Trailer | Frame structure |

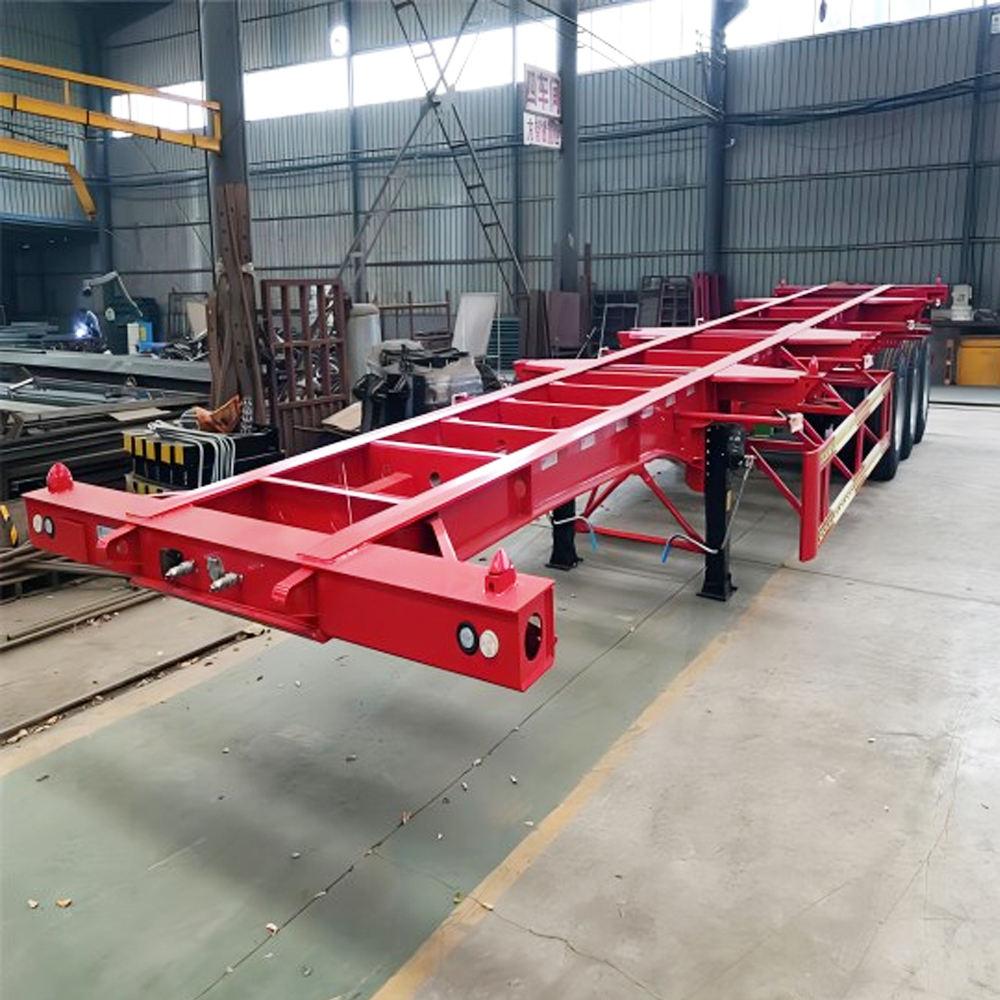

| Container Trailer | Load-bearing components |
Some buyers compare only quotation prices.
However, trailer price is affected by:
| Factor | Impact |
|---|---|
| Steel Grade | Higher strength increases material cost |
| Steel Thickness | Affects durability |
| Welding Quality | Affects safety |
| Manufacturing Process | Affects reliability |
| Component Selection | Affects service life |
A cheaper trailer may use:
Lower-grade steel
Reduced thickness
Simplified structure
This can increase long-term maintenance costs.
Hunan Chengxin Special Vehicle Co., Ltd focuses on producing reliable semi trailer solutions for global customers.
Products include:
Flatbed Semi Trailer
Lowbed Semi Trailer
Dump Semi Trailer
Sidewall Semi Trailer
Container Trailer
| Item | Specification |
|---|---|
| Main Frame | High-strength structural steel |
| Material Options | Q345/Q355 steel |
| Welding Process | Professional production control |
| Design | Heavy-duty structure |
| Customization | Available |
Before purchase, buyers should ask suppliers for:
✔ Steel certificate
✔ Material grade confirmation
✔ Production specifications
✔ Frame design
✔ Welding process
✔ Thickness information
✔ Load calculation
Yes. Q345 steel is widely used in heavy-duty trailers because it provides high strength, good weldability, and reliable performance.
Yes. Q345 has higher yield strength than standard Q235 structural steel.

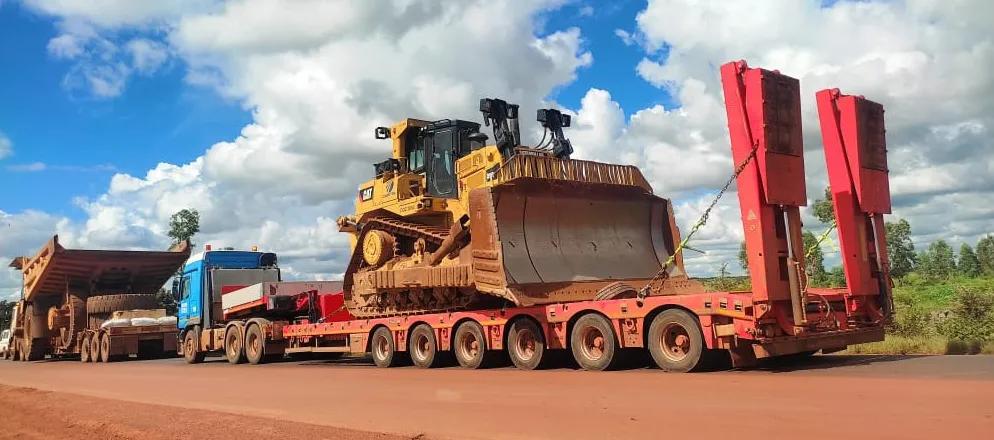

Lowbed trailers transport heavy machinery, so they require stronger frames to handle concentrated loads and road impacts.
Yes. Its strength and durability make it suitable for heavy transportation conditions, including construction and mining applications.
Material selection plays a critical role in semi trailer quality.
Q345 steel matters because it provides:
✔ Higher strength
✔ Better durability
✔ Improved load capacity
✔ Good welding performance
✔ Cost-effective heavy-duty performance
For customers purchasing flatbed trailers, lowbed trailers, dump trailers, or other heavy transport equipment, understanding steel quality helps make better buying decisions.
Hunan Chengxin Special Vehicle Co., Ltd uses high-quality structural steel solutions to manufacture reliable semi trailers for global transportation markets.
