Discover everything you need to know about lowbed trailer dimensions and load capacity. Learn standard sizes, axle configurations, deck height, payload options, and how to choose the right lowbed semi trailer for heavy equipment transportation.
Transporting heavy machinery safely requires selecting the correct lowbed trailer dimensions and load capacity. Whether you are moving excavators, bulldozers, cranes, mining equipment, or other oversized cargo, choosing the appropriate trailer size directly impacts transportation safety, legal compliance, and operating costs.
As a professional manufacturer, Hunan Chengxin Special Vehicle Co., Ltd provides customized lowbed semi trailers designed to meet different road conditions, cargo sizes, and international transportation regulations.
This guide explains the standard dimensions, load capacities, axle configurations, and key selection factors to help buyers choose the right lowbed trailer.

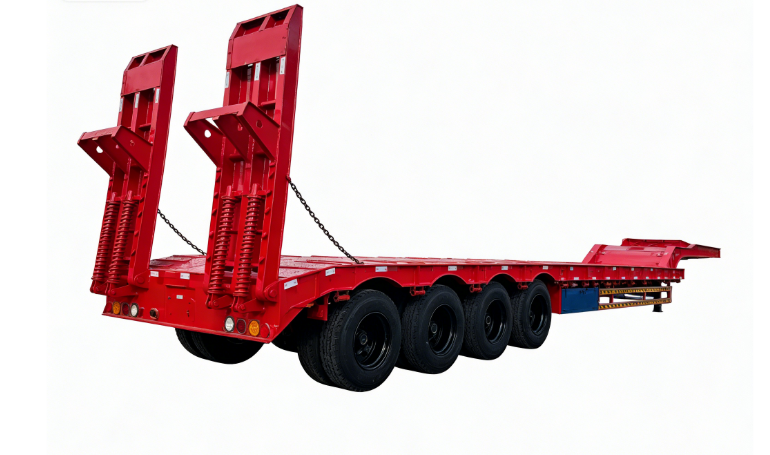

A lowbed trailer (also called a lowboy trailer) is a specialized semi trailer with a lowered deck that allows the transportation of tall and heavy equipment while keeping the overall vehicle height within legal road limits.
Common applications include:
Excavators
Bulldozers
Wheel loaders
Road rollers
Cranes
Mining equipment
Agricultural machinery
Industrial equipment
Lower center of gravity
Higher transportation stability
Larger payload capacity
Easy loading with rear ramps
Suitable for oversized machinery
Although dimensions can be customized, most international lowbed trailers follow similar specifications.
| Specification | Standard Range |
|---|---|
| Overall Length | 10,000–16,000 mm |
| Overall Width | 2,500–3,200 mm |
| Deck Length | 6,000–12,000 mm |
| Deck Width | 2,500–3,000 mm |
| Deck Height | 750–1,200 mm |
| Gooseneck Height | 1,500–1,800 mm |
| Rear Ramp Length | 1,500–2,500 mm |
| Number of Axles | 2–5 Axles |
Load capacity depends on the trailer structure, axle configuration, suspension system, and applicable road regulations.
| Axle Configuration | Typical Capacity | Recommended Cargo |
|---|---|---|
| 2 Axles | 30–40 Tons | Small construction equipment |
| 3 Axles | 40–60 Tons | Excavators, loaders |
| 4 Axles | 60–80 Tons | Heavy machinery |
| 5 Axles | 80–100 Tons | Oversized equipment |
| Multi-Axle | 100–150 Tons | Mining and project cargo |
Different industries require different trailer sizes.
| Application | Recommended Deck Length | Load Capacity |
|---|---|---|
| Mini Excavator | 6–8 m | 30–40 Tons |
| Medium Excavator | 8–10 m | 40–60 Tons |
| Bulldozer | 9–11 m | 60–80 Tons |
| Wheel Loader | 8–10 m | 40–60 Tons |
| Crane | 10–14 m | 80–120 Tons |
| Mining Equipment | Customized | 100–150 Tons |
The lower deck is the defining feature of a lowbed trailer.
Benefits include:
Lower overall transport height
Improved vehicle stability
Reduced rollover risk
Compliance with road height restrictions
Easier loading and unloading
A typical deck height of 750–1,200 mm provides an excellent balance between stability and ground clearance.
Selecting the correct axle configuration is essential for load distribution and road compliance.
| Configuration | Features | Best For |
|---|---|---|
| 2 Axles | Lightweight and economical | Medium-duty transport |
| 3 Axles | Most popular configuration | Construction machinery |
| 4 Axles | Higher payload | Heavy industrial equipment |
| 5 Axles | Better weight distribution | Oversized cargo |
| Multi-Axle | Maximum capacity | Mining and wind power projects |
| Feature | Mechanical Suspension | Air Suspension |
|---|---|---|
| Cost | Lower | Higher |
| Maintenance | Simple | Moderate |
| Durability | Excellent | Excellent |
| Ride Comfort | Good | Excellent |
| Cargo Protection | Good | Excellent |
| Best Application | Rough roads | Long-distance transport |
For customers operating in Africa or mining regions, mechanical suspension is often preferred due to its durability and ease of maintenance.
A high-quality lowbed trailer relies on premium materials.
Typical components include:
| Component | Material |
|---|---|
| Main Beam | Q345 High-Strength Steel |
| Cross Members | High-strength structural steel |
| Floor Plate | Steel checker plate |
| Axles | FUWA / BPW or equivalent |
| Landing Gear | JOST or equivalent |
| Brake System | WABCO-compatible air brake system |
High-strength steel improves:
Structural rigidity
Fatigue resistance
Service life
Payload capability
Before purchasing, consider the following:
Select a trailer with sufficient rated capacity while complying with local axle-load regulations.
Measure:
Length
Width
Height
Weight
These determine the required deck size and axle configuration.
Choose:
Mechanical suspension for rough roads
Air suspension for smoother highways and sensitive cargo
Check legal limits for:
Maximum width
Maximum height
Gross vehicle weight
Axle load
Hunan Chengxin offers:
OEM & ODM customization
High-strength steel construction
Flexible axle configurations
Factory-direct pricing
Strict quality inspection
Worldwide export experience
Technical support and after-sales service
The company supplies customized lowbed trailers for customers across Africa, the Middle East, Southeast Asia, Central Asia, and South America.
Choosing the correct lowbed trailer dimensions and capacity is essential for safe, efficient, and cost-effective heavy equipment transportation. By understanding deck size, load capacity, axle configuration, and suspension options, buyers can select a trailer that matches their operational needs.
With professional engineering, premium materials, and flexible OEM services, Hunan Chengxin Special Vehicle Co., Ltd provides reliable lowbed semi trailers designed for global heavy transport applications.
