Learn how dump semi trailer capacity is calculated. This complete guide explains dump trailer payload, volume, dimensions, axle configurations, material capacity, and how to choose the right dump semi trailer for mining, construction, and bulk transport applications.
When purchasing a dump semi trailer, capacity is one of the most important factors buyers need to understand.
Many customers ask:
"How many tons can a dump semi trailer carry?"
"What is the volume capacity of a dump trailer?"
"Should I choose a 30cbm, 40cbm, or 50cbm dump trailer?"
The answer depends on several factors:
Trailer dimensions
Cargo density
Axle configuration
Frame strength
Hydraulic system
Road conditions
Legal load limits
A dump semi trailer is not only measured by cubic meters (m³). Its actual working capacity depends on both:
Volume capacity (m³ / CBM)
Payload capacity (tons)
A trailer may have enough space for a certain volume, but the cargo weight may reach the maximum load limit before the trailer is full.
Dump semi trailer capacity refers to the maximum amount of bulk material the trailer can transport safely.
It includes two important measurements:
Measured in:
Cubic meters (m³)
Cubic yards (yd³)
It represents the available cargo space.
Calculation formula:
Volume = Length × Width × Height
For example:
A dump box:
Length: 9m
Width: 2.35m
Height: 1.8m
Capacity:
9 × 2.35 × 1.8 ≈ 38m³
Measured in:
Tons (t)
It represents the maximum weight of cargo the trailer can carry.
Formula:
Payload Capacity = Gross Vehicle Weight - Trailer Tare Weight
Example:
| Item | Weight |
|---|---|
| Maximum Total Weight | 60 tons |
| Trailer Weight | 8 tons |
| Cargo Capacity | Approx. 52 tons |
Actual capacity depends on local regulations and operating conditions.
Different industries require different capacities.
| Dump Semi Trailer Type | Volume Capacity | Payload Capacity | Main Application |
|---|---|---|---|
| Small Dump Trailer | 15–25 m³ | 20–35 tons | General cargo |
| Standard Dump Semi Trailer | 30–40 m³ | 35–50 tons | Construction materials |
| Heavy Duty Dump Trailer | 40–60 m³ | 50–80 tons | Mining and bulk transport |
| Large Mining Dump Trailer | 60m³+ | 80 tons+ | Large-scale mining |
The final specification depends on material density, axle configuration, and road requirements.
Different industries require different dump trailer capacities.
Common cargo:
Sand
Gravel
Concrete materials
Soil
Recommended:
| Requirement | Specification |
|---|---|
| Volume | 30–40m³ |
| Axles | 3 axles |
| Capacity | 40–50 tons |

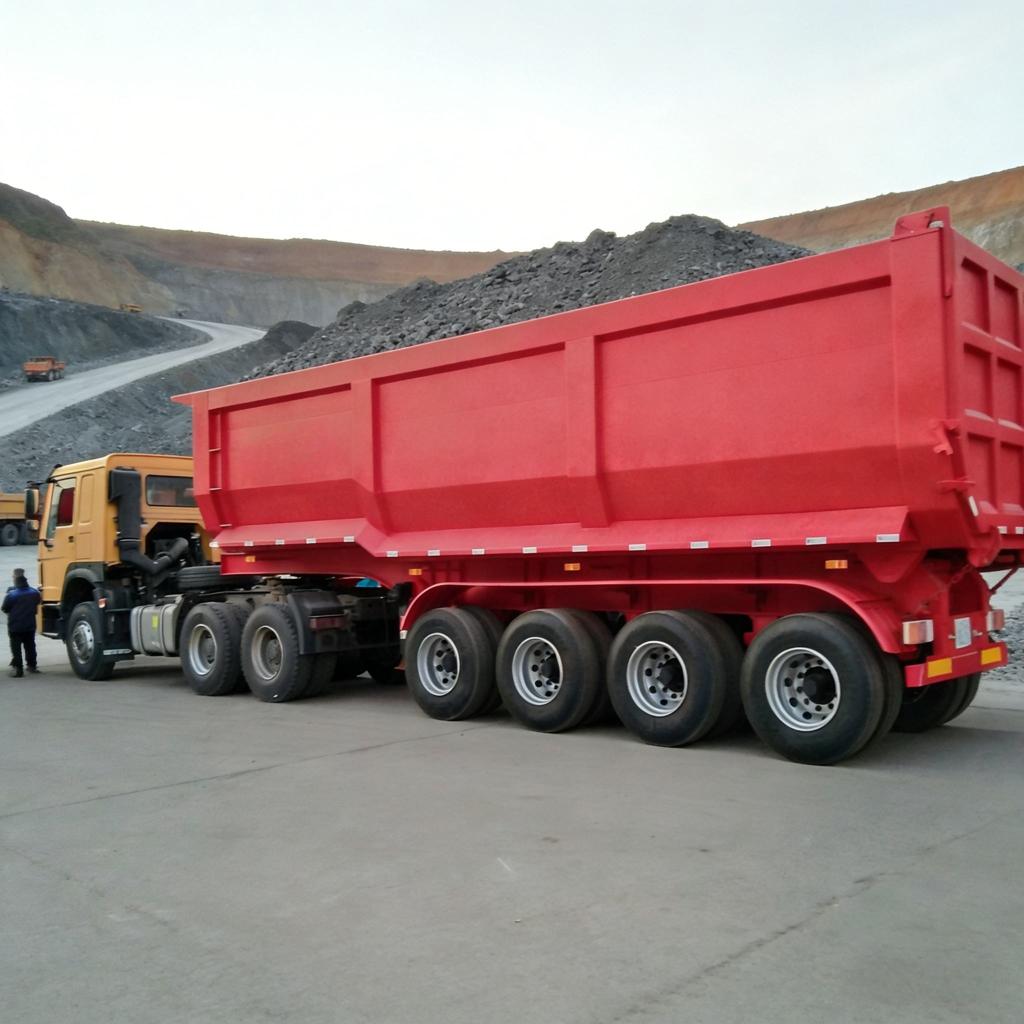

Common cargo:
Ore
Coal
Stone
Minerals
Recommended:
| Requirement | Specification |
|---|---|
| Volume | 40–60m³ |
| Axles | 3–4 axles |
| Capacity | 50–80 tons |
| Structure | Heavy-duty reinforced |
Common cargo:
Grain
Corn
Fertilizer
Recommended:
| Requirement | Specification |
|---|---|
| Volume | 35–50m³ |
| Structure | Lightweight design |
| Side Height | Higher capacity |
Dimensions directly influence capacity.
| Item | Common Range |
|---|---|
| Length | 8–13.5m |
| Width | 2.3–2.55m |
| Side Height | 1.2–2.2m |
| Volume | 25–60m³ |

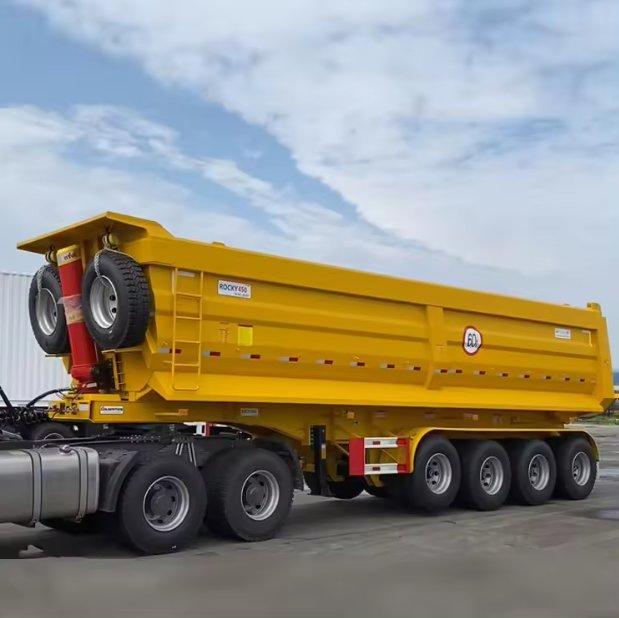

| Specification | Value |
|---|---|
| Trailer Type | Rear Tipping Dump Semi Trailer |
| Body Shape | U Shape |
| Length | Approx. 9.5–10m |
| Width | Approx. 2.35m |
| Height | Approx. 1.8m |
| Volume | About 40m³ |
| Axles | 3 × 13 Ton |
The axle system determines how much weight the trailer can safely support.
| Axle Configuration | Capacity Range | Application |
|---|---|---|
| 2 Axles | 25–35 tons | Light transport |
| 3 Axles | 40–60 tons | Standard dump trailer |
| 4 Axles | 60–80 tons | Heavy-duty transport |
| Multi Axle | 80 tons+ | Mining applications |
| Feature | 13 Ton Axle | 16 Ton Axle |
|---|---|---|
| Load Capacity | Standard | Heavy Duty |
| Cost | Lower | Higher |
| Maintenance | Easy | Medium |
| Mining Use | Moderate | Excellent |
| Rough Roads | Good | Better |
For African mining and construction markets, heavy-duty axle configurations are often preferred due to demanding road conditions.
One of the biggest misunderstandings about dump trailer capacity is:
More volume does not always mean more cargo weight.
Different materials have different densities.
| Material | Approximate Density | Effect on Capacity |
|---|---|---|
| Grain | Low | Higher volume possible |
| Coal | Medium | Normal loading |
| Sand | High | Weight limit reached faster |
| Gravel | High | Requires stronger trailer |
| Ore | Very High | Heavy-duty design required |
Example:
A 40m³ trailer carrying grain may not reach its weight limit.
However:
40m³ of stone may exceed the permitted payload.
The body shape also affects loading efficiency.
Advantages:
✔ Better material flow
✔ Lower material sticking
✔ Easier unloading
✔ Suitable for sand and gravel
Advantages:
✔ Larger volume
✔ Simple manufacturing
✔ Suitable for general materials
| Feature | U Shape | Square Shape |
|---|---|---|
| Unloading Efficiency | Excellent | Good |
| Cleaning | Easier | Normal |
| Strength | High | High |
| Mining Use | Recommended | Suitable |
Dump semi trailers rely on hydraulic systems for unloading.
Main components:
| Component | Function |
|---|---|
| Hydraulic Cylinder | Lifts dump body |
| Hydraulic Pump | Provides pressure |
| Hydraulic Valve | Controls operation |
| Hydraulic Tank | Stores oil |
Heavy-duty applications require:
High-pressure hydraulic cylinders
Strong tipping structure
Reinforced mounting points
Before choosing capacity, consider:
Ask:
What material will be transported?
What is the density?
Long-distance transport requires:
Better durability
Reliable suspension
Strong frame
| Road Condition | Recommended Design |
|---|---|
| Highway | Standard configuration |
| Rural Road | Reinforced suspension |
| Mining Road | Heavy-duty frame and axles |
The tractor horsepower and fifth wheel capacity must match the trailer.
Common matching:
| Dump Trailer | Recommended Tractor |
|---|---|
| 30–40m³ | 6×4 tractor truck |
| 40–50m³ | 6×4 / 8×4 tractor |
| Heavy Mining Trailer | High horsepower tractor |
| Model | Volume | Payload | Best Application |
|---|---|---|---|
| 30m³ Dump Trailer | Medium | 35–45 tons | Construction |
| 40m³ Dump Trailer | Popular | 40–55 tons | General bulk transport |
| 50m³ Dump Trailer | Large | 50–70 tons | Mining |
| 60m³ Dump Trailer | Heavy Duty | 70 tons+ | Large projects |
Hunan Chengxin Special Vehicle Co., Ltd provides customized dump semi trailer solutions for global markets.
Products include:
U Shape Dump Semi Trailer
Side Dump Semi Trailer
Mining Dump Trailer
Heavy Duty Tipping Trailer
| Product | Capacity Range |
|---|---|
| Standard Dump Trailer | 30–40m³ |
| Heavy Duty Dump Trailer | 40–60m³ |
| Customized Mining Trailer | 60m³+ |
✔ Reinforced steel structure
✔ OEM customization
✔ Hydraulic system options
✔ Heavy-duty axle solutions
✔ Export experience
Before purchasing, confirm:
| Item | Importance |
|---|---|
| Cargo Material | ★★★★★ |
| Required Volume | ★★★★★ |
| Payload Requirement | ★★★★★ |
| Axle Number | ★★★★★ |
| Road Conditions | ★★★★ |
| Tractor Model | ★★★★ |
| Hydraulic System | ★★★★ |
| Steel Material | ★★★★ |
Most dump semi trailers carry approximately 30–80 tons depending on design, axle configuration, and local regulations.
A 30–40m³ dump semi trailer is commonly used for construction and general bulk transport.
No. Capacity should match cargo density, road conditions, tractor power, and legal requirements.
Mining applications usually require:
Heavy-duty frame
Reinforced axles
Large hydraulic system
40–60m³ or customized capacity
Understanding dump semi trailer capacity requires more than looking at cubic meters.
A professional buyer should consider:
✔ Volume capacity
✔ Payload capacity
✔ Cargo density
✔ Axle configuration
✔ Road conditions
✔ Hydraulic performance
Choosing the correct dump trailer capacity improves transportation efficiency, reduces operating costs, and extends trailer service life.
Hunan Chengxin Special Vehicle Co., Ltd provides customized dump semi trailer solutions for construction, mining, agriculture, and bulk transportation industries worldwide.
