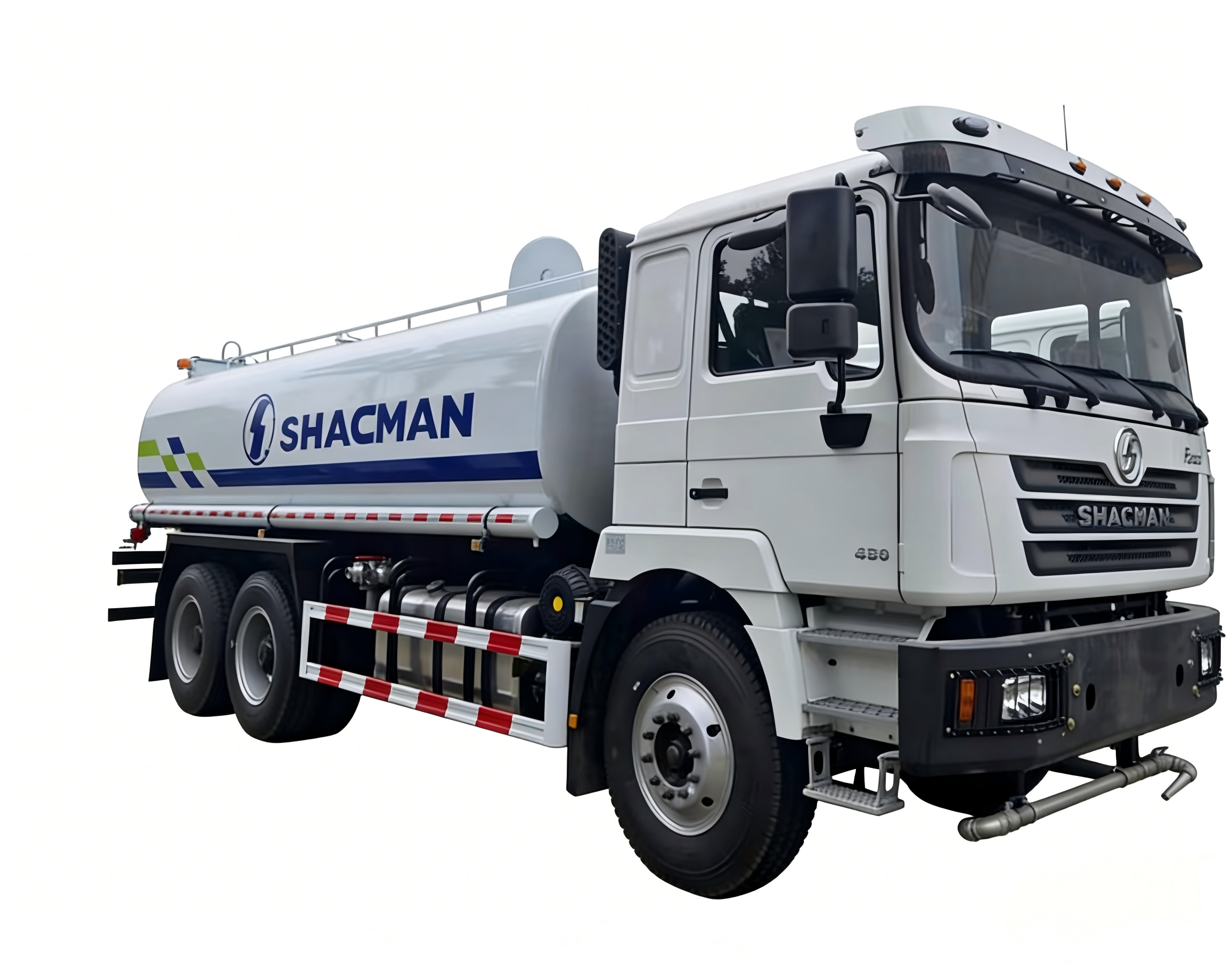

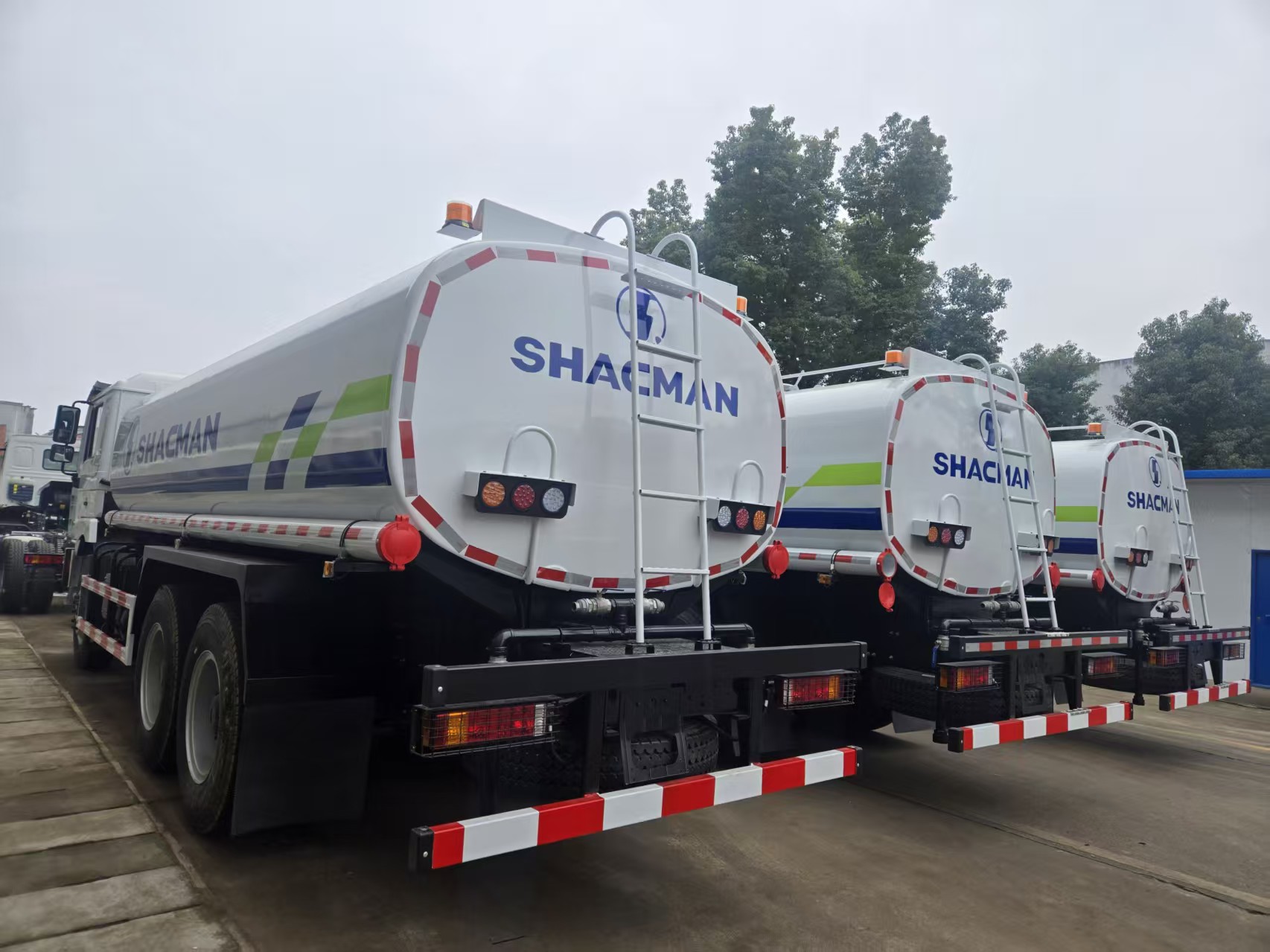

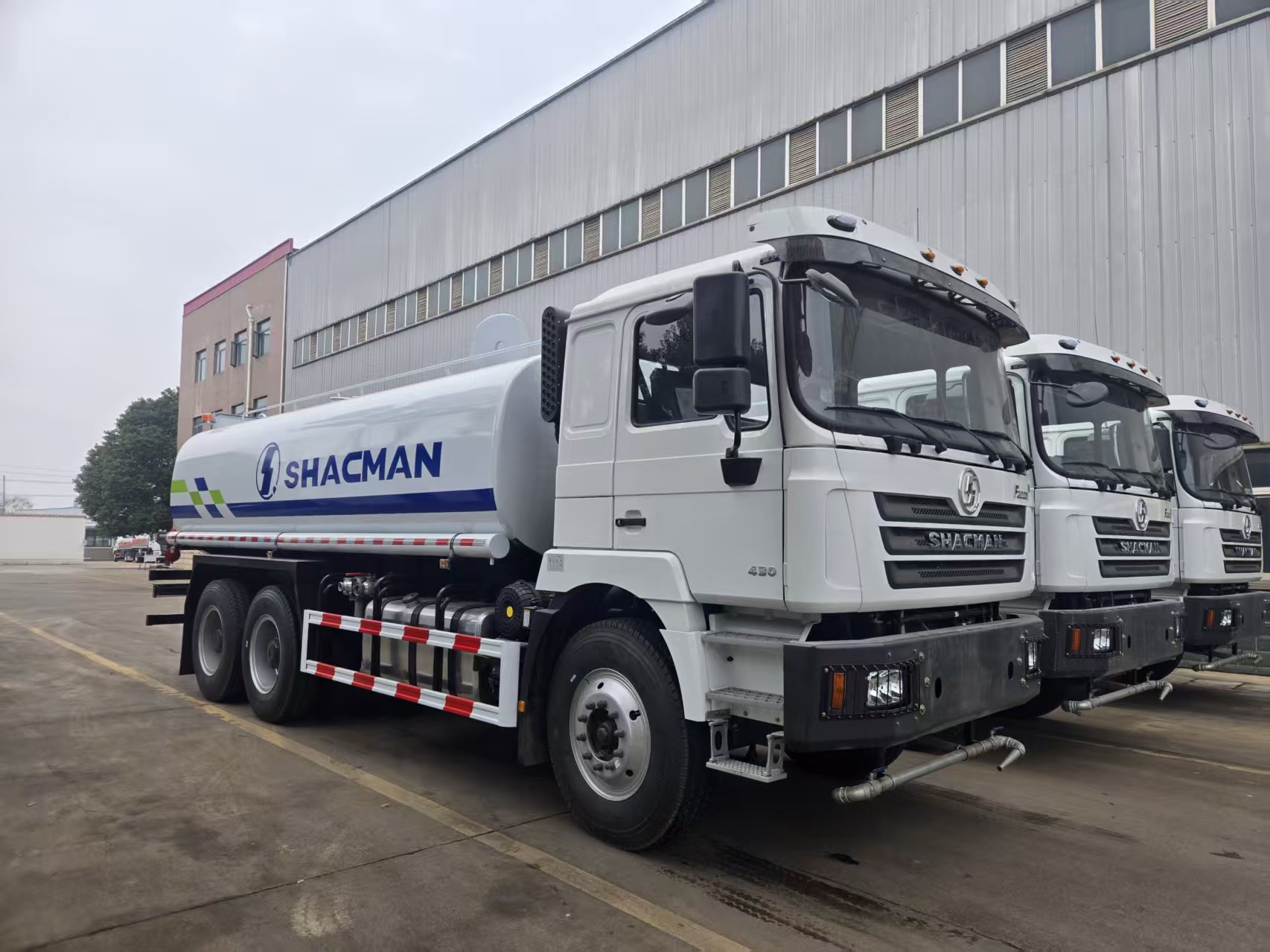

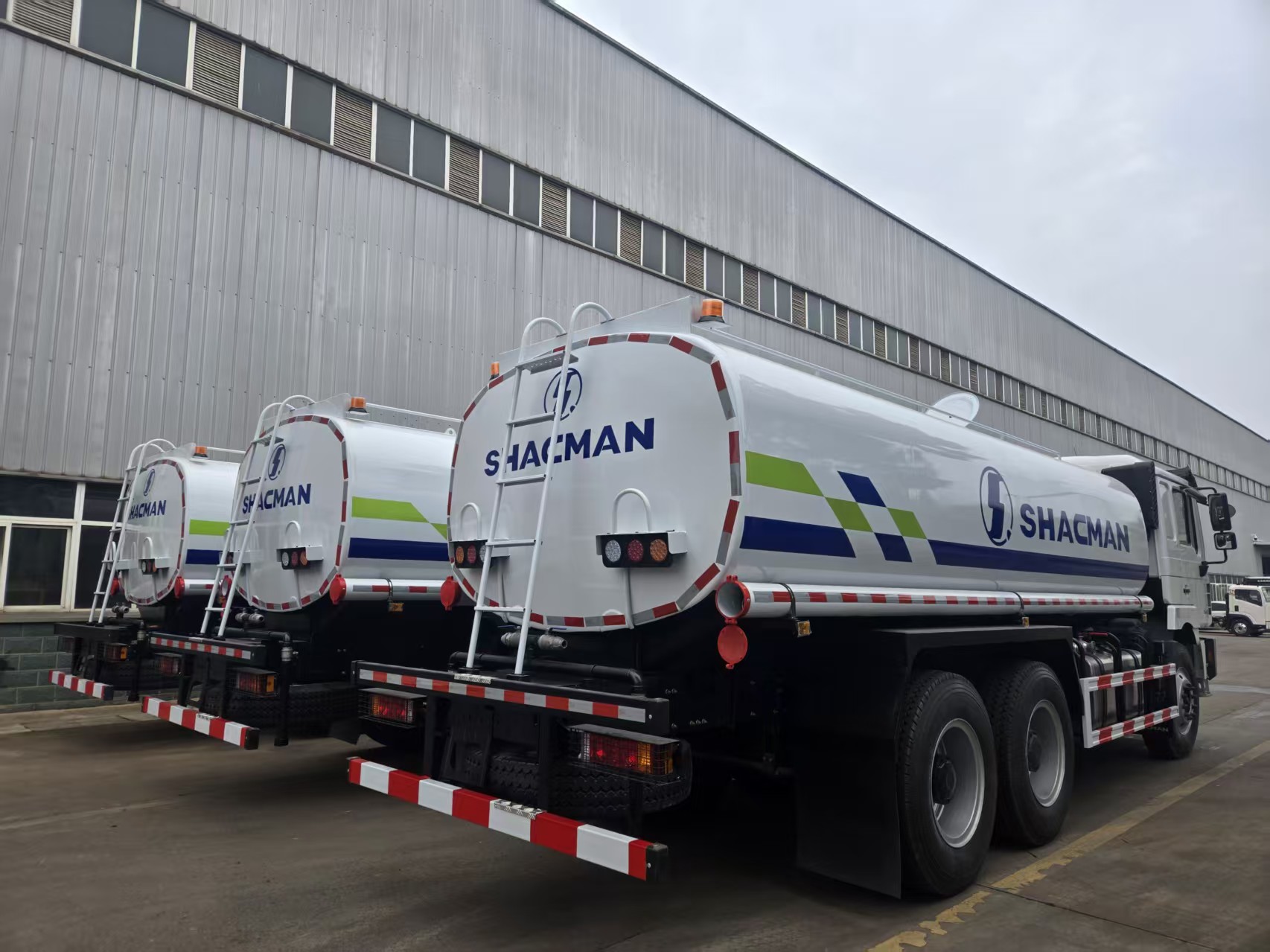

Shacman Water Tank Truck for Efficient Spraying
Parameter：
Model | SX5255GSSDN434 |
Driving Position | Customizable |
Engine | WP10.300E22 |
Emission Standard | Euro II |
Transmission System | RTD-11509C (with QH50 Flange PTO) |
Gear Ratio | 13T HD Two-Stage (Ratio: 5.262) |
Chassis Dimensions (mm) | 850×300 (8+5) |
Wheelbase (mm) | 4375+1400 |
Front Axle | HD 7.5T Front Axle |
Suspension System | Multi-leaf Springs (Front & Rear); 2 Main Leaves + 2 U-bolts |
Fuel Tank | 300L Aluminum Alloy |
Tires | 12.00R20 |
Other Specifications: F3000 medium-long flat-roof cab (without roof or side air deflectors); four-point hydraulic suspension; hydraulic driver's seat; electronically controlled automatic climate control; power windows; manual cab tilting mechanism; standard air filter; standard steering wheel; 165Ah maintenance-free battery; metal bumper; three-step access ladder; spare tire carrier; SHACMAN branding; full English-language badging. Superstructure: 20-cubic-meter capacity tank constructed from standard Q235 carbon steel (plate thickness: 5mm). Equipped with a high-power, specialized sprinkler pump capable of self-priming and self-discharging operations. Features include front flushing nozzles, rear sprinkling nozzles, side spray nozzles, and high-level shower nozzles. The main piping has been thickened; includes a direct-flow ball-valve type fire hydrant interface. Features a rear working platform (perforated non-slip surface) and is fitted with a high-pressure water cannon. |
